12th Gen Hybrid Power Makes Multitask Easy
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Specification
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR | Support Alder lake-s LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor |
| CHIPSET | Intel H610 Express chipset |
| MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz |
| VIDEO OUTPUT | HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek High Definition Audio |
| ETHERNET | (1)Intel GbE Lan / (1)2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1×4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch |

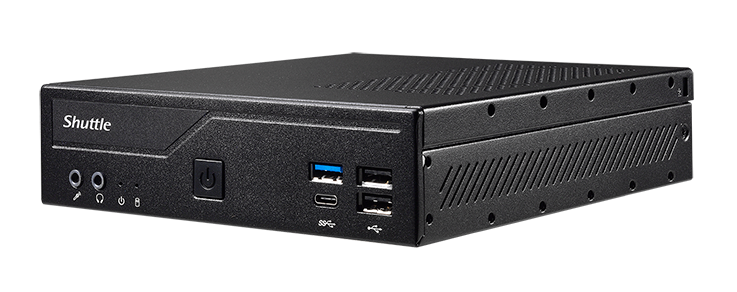

| FRONT PANEL | (2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 2.0 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED |
| BACK PANEL | (2) RJ45 Gigabit LAN port w/LED (1) HDMI port (2) Display port (2) USB 3.2 Gen1 ports (2) USB 2.0 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
| DRIVE BAYS | (1) 2.5″ HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm Dimension drawing |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 10/11 64 bit O.S Linux |
| REMARK | RS232/422/485 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. |
